- Type: Inkjet Printer
- Condition: New
- Plate Type: Flatbed Printer
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Apex
- Model Number: MT-FP1610P-UV
- Usage: Card Printer, Label Printer, Paper Printer, Tube Printer, Glass, wood, metal, plastic, stone, ceramic
- Automatic Grade: Automatic
- Color & Page: Multicolor
- Voltage: 220v/ 110v
- Gross Power: 360W
- Dimensions(L*W*H): 3130mm*1750mm*1350mm (123"*69"*53")
- Weight: 400KG
- Certification: CE Certification
- After-sales Service Provided: No overseas service provided
- Print Size: 1600*1000mm
- Print Head: Toshiba CE4
- Print Format: TIFF, PSD, JPG, etc
- Product name: Led Digital Flatbed UV Printer
- RIP Software: Metal, Plastic, Glass, Wood, Ceramics, Acrylic, Leather
- Ink Colors: PhotoPrint
- Key words: flatbed uv printer, uv flatbed printer, flatbed printer
- Application: Phone Shell.Card.Udisk.Mobile Power.Hairpin .personalized Printing
Packaging & Delivery
|Packaging Details:||Wooden Package|
|Delivery Detail:||Shipped in 10 days after payment|
Automatic Apex Large Format A1 T-Shirt Led Digital Flatbed UV Printer
2017 APEX New Products A1 60*90 Digital UV LED Flatbed Printer
The digital UV Flatbed Printer is the latest UV machine of APEX company . This model is designed for industrial bulk production with high printing speed,which can print on almost any material directly .With UV light irradiating during printing procedure, images on object surface are dry fast and Scratch resistance.
Equipped with TOSHIBA CE4 Print Head
High density nozzles, as many as 636, dot frequency is 28KHZ which will help to achieve a high print speed. Spray ink can reach 300 billion times without clogging and ablique, but with long durable life. 8 Levels grey scale, 5PL ink drop size, with a high resolution.

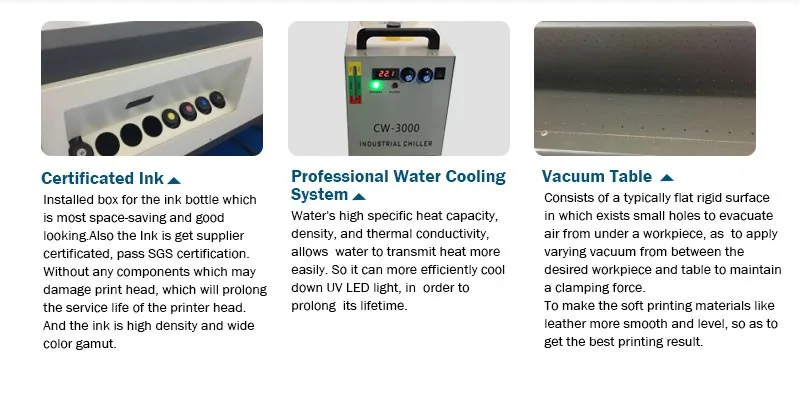

Ink is get supplier certificated, pass SGS certification. Without any components which may damage print head, which will prolong the service life of the printer head. And the ink is high density and wide color gamut.
High Precision Printer Head Base Board
Printer head base board is OEM by professional factory with high-precise process. Error is less than 0.01mm to improve print accuracy.
All accessories of the ink system are certified and stable working, without any chemical reaction with ink.
Professional RIP software
User interface is simple, easy to understand and operate. Efficient workflow, and excellent image handing, rich color management tools, professional color processing.
Printer Head Anti-Collision System
Printer Head is installed with Anti-collision system to prevent any damage from accidents caused by human error or material deformation.
|Print Head||Toshiba CE4|
|Print Head Quantity||6-16|
|Curing System||LED UV|
|Print Format||TIFF, PSD, JPG, etc|
|Cleaning System||Auto Positive Pressure Printing|
|Operation System||Windows 7/ Windows 8/ Windows 10|
|Power Requirement||50/60HZ 220V(±10%)<30A; 110V(±10%)<60A|
